Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil

Ask Lasest Price
Brand Name :	GYG
Model Number :	GH-80H GH-175H GH-210H
Certification :	EAC/CE
Price :	USD50-200/PC
Payment Terms :	Western Union, MoneyGram, T/T
Supply Ability :	10000 pcs/Year
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts ,

HL 46 hydraulic oil

Buffer is device to provide a final elevator safety protection generally installed in the elevator shaft bottom pit, located right under the car and counterweight. When the elevator runs upward or downward, it may overrun terminal floor bottom or top because of accidental ineffective braking. Buffer provides absorption to avoid elevator car or counterweight from hitting bottom or top to protect safety for passengers and devices.

According to speed state, buffers can be divided into energy consuming buffer type (oil buffer as representative) and energy storing type (V≤1.0m/s, polyurethane buffer as representative)

NO	TYPE	MODEL	RATED SPEED (m/s)	CAPACITY (kgs)	COMPRESSING DISTANCE S(mm)	FREE STATE HIGHT H(mm)	FIXING DIMENSION (mm)	OIL CAPACITY (L)
1	Oil Buffer	OH-65	≤0.63	500~4600	65	355	100*150	0.45
2		OH-80A	≤1.0	1500~4600	80	405	90*150	0.52
3		OH-275	≤2.0	800~3800	275	790	80*210	1.50
4		OH-425	≤2.5	750~3600	425	1145	100*150	2.50
5		OH-80	≤1.0	600~3000	80	315	90*150	0.40
6		OH-175	≤1.6	600~3000	175	510	90*150	0.60
7		OH-210	≤1.75	700~3600	210	610	90*150	0.80
8		OH-80E	≤1.0	600~3000	80	282	120*90	0.40
9		OH-175E	≤1.6	600~3000	175	510	120*90	0.60
10		OH-210E	≤1.75	600~3600	210	592	120*90	0.80
11		OH-80H	≤1.0	600~3600	80	300	90*150	0.40
12		OH-175H	≤1.6	600~3600	175	505	90*150	0.60
13		OH-210H	≤1.75	700~3600	210	595	90*150	0.80
14		OH-10	≤1.0	300~2500	100	390	90*150	0.50
15		OH-16	≤1.6	700~5300	175	625	100*210	1.70
16		OH-20	≤2.0	1000~5300	290	915	100*210	2.60
17		OH-025	≤0.4	500~1200	25	122	100*100	1.30
18	Polyurethane Buffer	OH-J11	≤0.63	500~1500	35~55	60	95*95	-
19	Polyurethane Buffer	OH-J21	≤1.0	600~4500	80~140	145	125*125	-

PERFORMANCE PARAMETERS:

The oil specification: HL 46 hydraulic oil

Product type: Energy consuming (pre filling type)

Compression Stroke: 80/175/210mm

Free state height: 300/505/595mm

Type	S(mm)	H(mm)	A*B(mm)	a*b(mm)
GH-80H	80	300	125*200	90*150
GH-175H	175	505	125*200	90*150
GH-210H	210	595	125*200	90*150

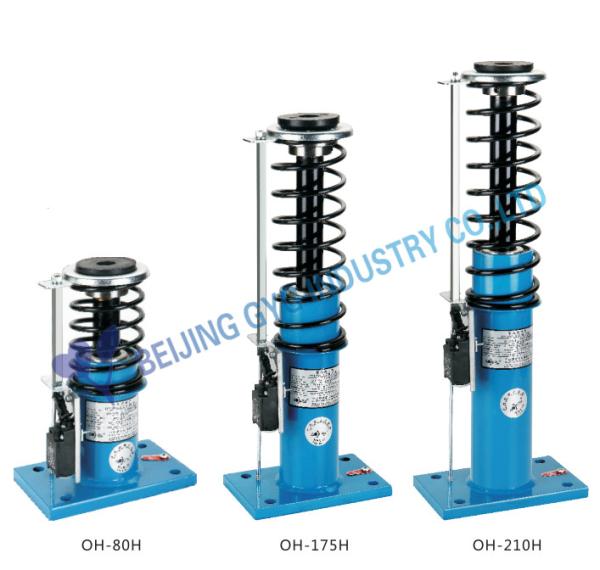

DIFFERENT MODELS:

CERTIFICATION:

EXHIBITION SHOW:
