M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B

Ask Lasest Price
Brand Name :	GYG
Model Number :	GX-210B
Certification :	EAC/CE
Payment Terms :	Western Union, MoneyGram, T/T
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

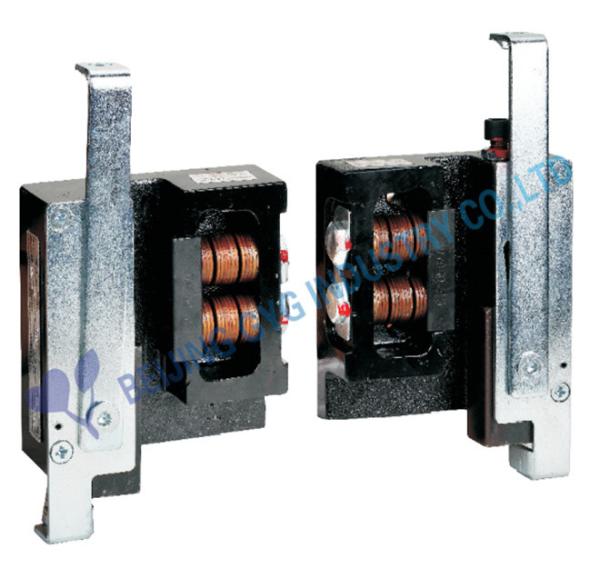

M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B

ELEVATOR SAFETY GEAR GX-210B , PROGRESSIVE SAFETY GEAR , ELEVATOR SAFETY PARTS
RATED SPEED 2.5M/S

The elevator safety gear is a device under the control of speed governor, when the elevator over speed its rated speed or in the case of suspension rope breakage or slack, the car stop in emergency and clamp on the guide rail. It provides effective protection to the safe operation of the elevator and generally installed in the car frame or counterweight frame. Safety gear device is composed of two parts: operating mechanism (safety gear linkage mechanism) and braking mechanism (safety clamp).

PERFORMANCE PARAMETER:

Rated speed	≤2.5m/s
Total permit system quality	600-2800kg
Matching guide rail	≤16mm(guideway width)
Structure form	Cup spring,single moving wedge
Pulling form	single pulling(M8)
Installation position	car side , counterweight side

DIFFERENT MODELS:
