Brand Name : | GYG |
Model Number : | GX-200Q |
Price : | 50-200 USD/SET |
Payment Terms : | Western Union, MoneyGram, T/T |
Supply Ability : | 76000Sets /Year |
Delivery Time : | 3-5 working days |
TENSION DEVICE GX-200Q ELEVATOR SAFETY PARTS, SHEAVE DIAMETER 200MM
Function of tension device
Keep the speed limiting wire rope tensified to ensure that the wire rope rotates in line with the rotation of the
rope wheel and that the speed limiter can provide the necessary brake lift

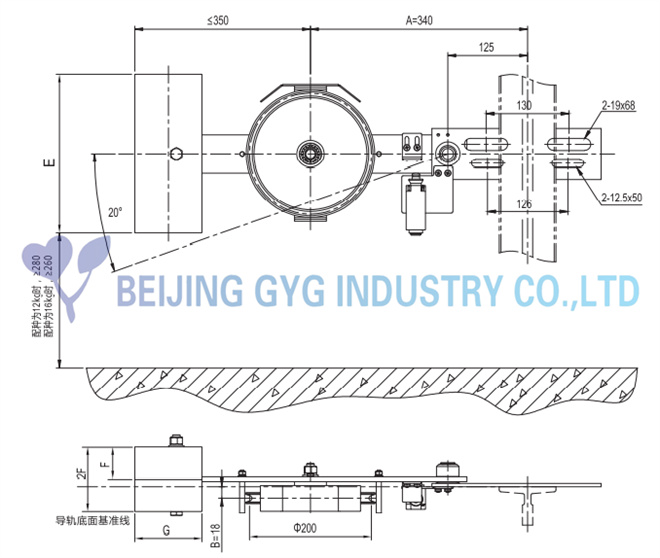

PERFORMANCE PARAMETERS:
Sheave diameter | Φ200mm |
wire rope diameter | Φ6 mm |
Weighe type | Barite(High density of ore) |
Installation position | elevator pit guide rail side |
Quality of balancing | Weight material | Quantity | E | F | G |
8kg | Barite | 2 | 250 | 85 | 105 |
12kg | Barite | 1 | 265 | 85 | 165 |
